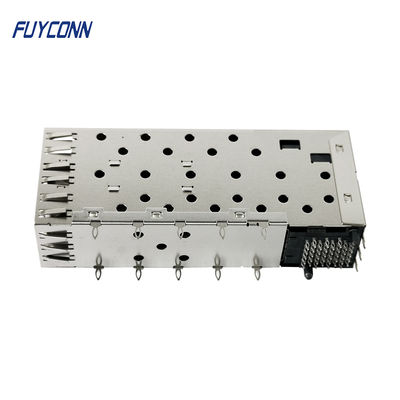

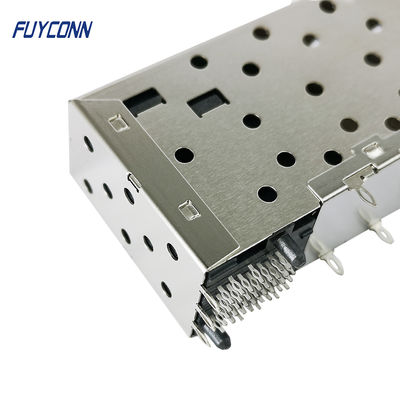

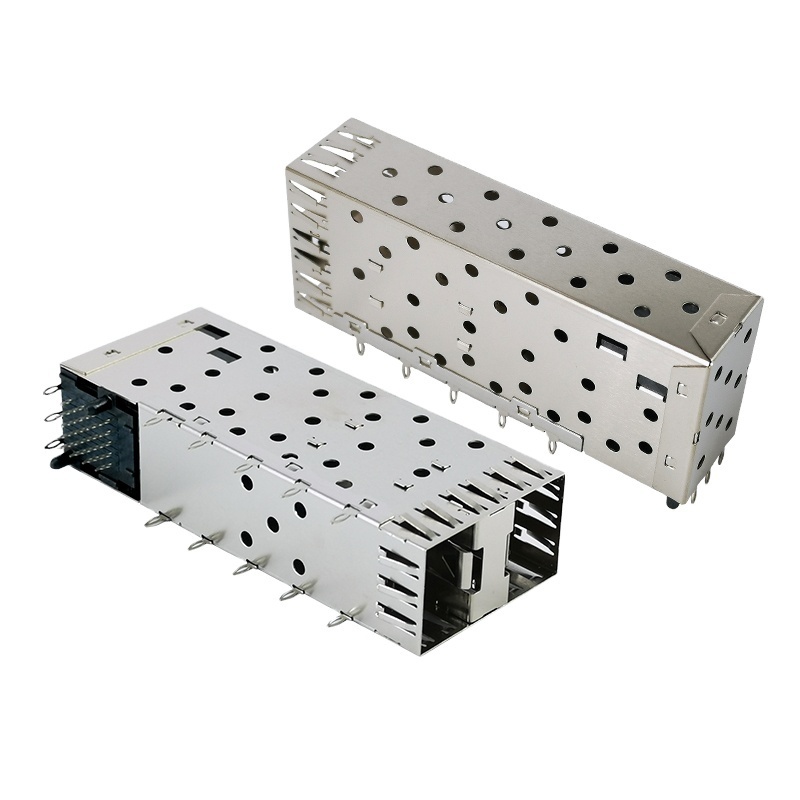

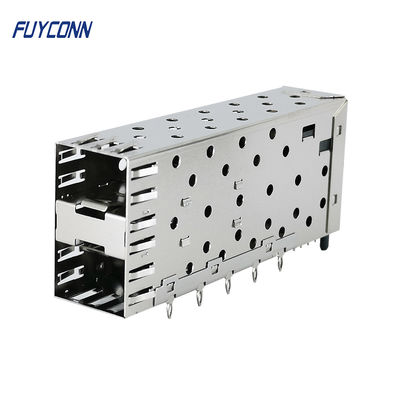

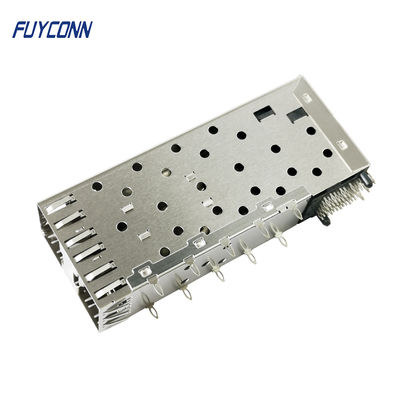

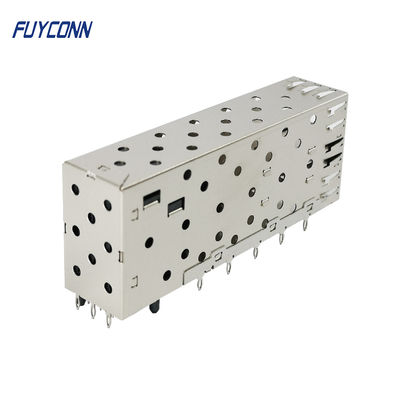

2x1 Ports Housing Shielded SFP Cage With Connector Press-Fit Stackable 2-by-1 Multi-Port Female SFP Connector W/o Light Pipe
Product Overview
The SFP (Small Form-factor Pluggable) module connector supports various data speeds and is a primary optical transceiver for data communication. Introduced in early 2000, it replaced the gigabit interface converter (GBIC) in fiber optic and Ethernet high-speed networking systems. Compliant with IEEE 802.3 and SFF-8472 specifications, SFP connectors handle up to 4.25Gb/s with greater port density than GBIC, earning the nickname "mini GBIC."
The SFP+ (SFP10) extension, introduced in 2006, supports data rates up to 10Gb/s (IEEE802.3ae, SFF-8431/8432). Both SFP and SFP+ support Gigabit Ethernet, Fibre Channel, SONET, OTN, and other standards, with copper and optical variants available.
Product Features
| Feature |
Specification |
| Product Name |
SFP Connector |
| Product Line |
Small Form-factor Pluggable |
| Connector Gender |
Female Centronic Connector |
| Contact Type |
Small Form-factor Pluggable |
| Number of Position |
40pin |
| Ports |
2*1 2 Ports |
| Contact Material |
Phosphore Bronze |
| Finish |
Nickel Silver |
| Insulation Material |
PBT |
| Lightpipe |
No |
Electrical Specifications
| Specification |
Value |
| Current Rating |
1AMP |
| Withstanding Voltage |
500v for one minute |
| Insulator Resistance |
500MΩ min (at DC500V) |
| Contact Resistance |
35MΩ Max |
| Operation Temperature |
-55°C to +105°C |
Applications
- Networking equipment
- Router/Switch
- Data/Communications
- High-end servers
- Networking
- Telecommunications
- Switches
- Telecommunications hardware
- Fibre Channel and Gigabit Ethernet
- Servers
